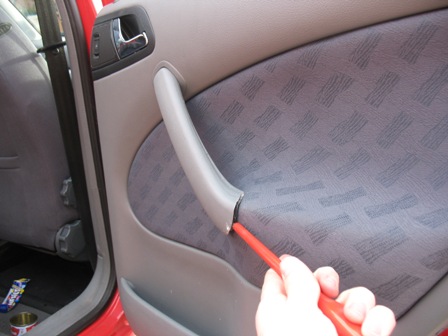

1. Remove the handle trim.

2. Unscrew the grip handle form the trim panel

4. Unscrew retaining screw

5. Unscrew all trim panel retaining screws

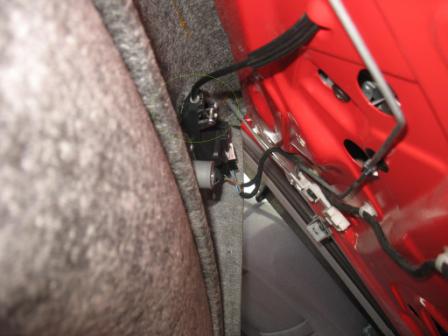

6.  Unhook the inner handle Cable and disconnect all remaining electrical cables.

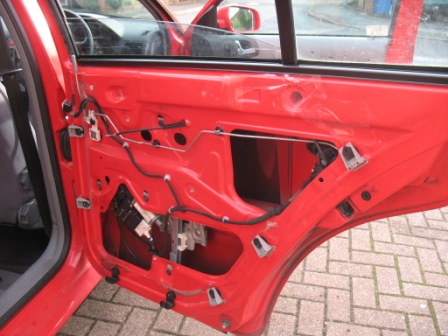

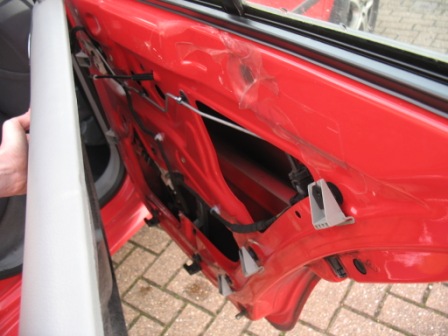

7. Remove Inner Trim Panel from the door

8.  Turn your  igniter key for few seconds and drop down the window glass to see window clip as shown on the picture

9. Disconnect wiring from the motor.

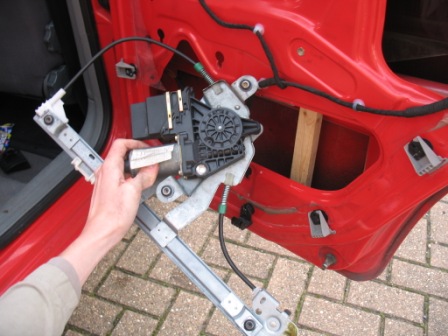

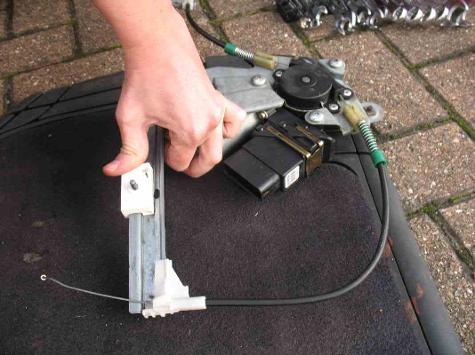

10. Gently detach existing Clip from window clamp, put some piece of wood block to support window and Using Torx Key unscrew assembly from door inner panel.

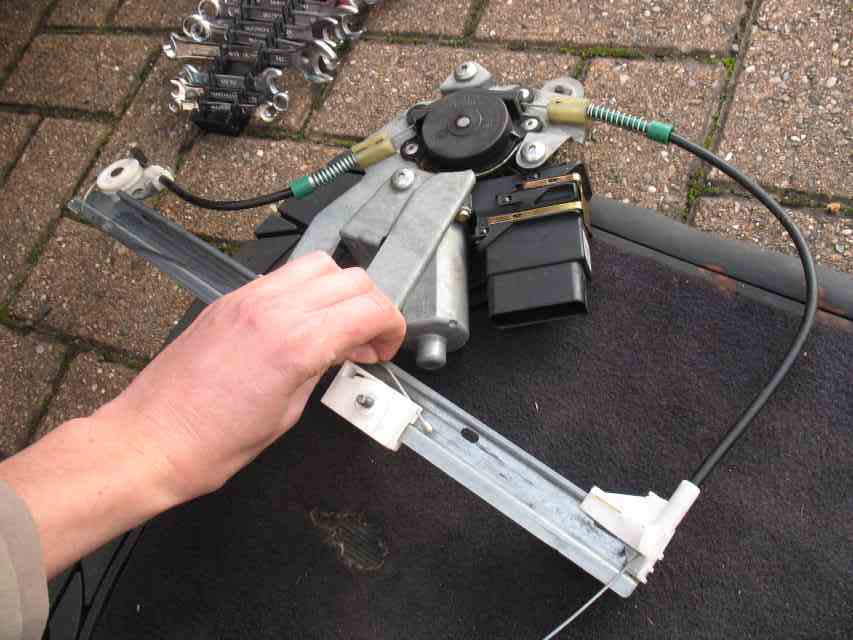

11.  Insert the Cable in one whole of the slider.

12. Pull the slider towards the other cable end. Ask somebody else to squeeze both springs if possible.

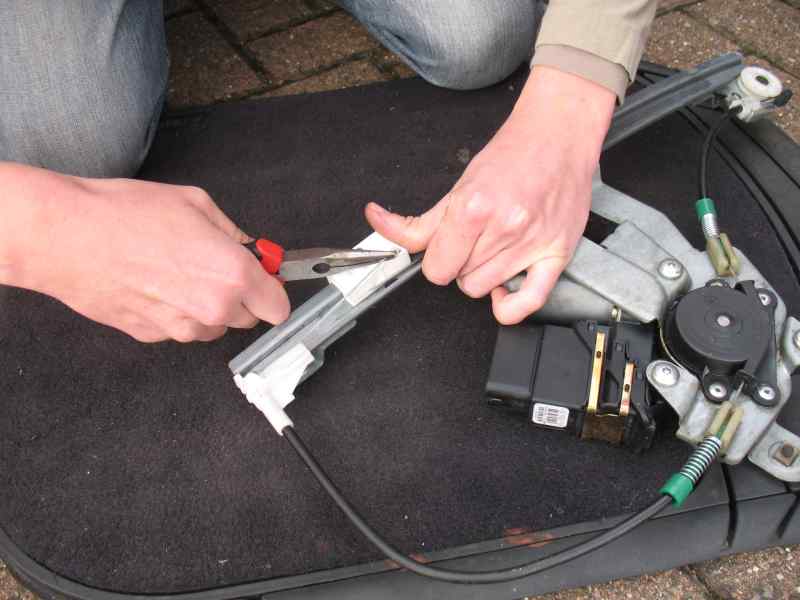

13.  Insert the other Cable End with pliers in to second whole from the top. It should look like this on the picture.

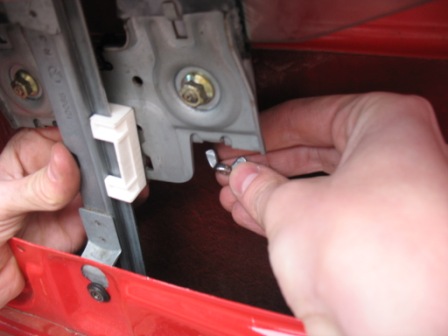

14. Insert metal plate through threaded part of the slider from the other side of clamp, then spring washer and tighten with wing nut.
